gui: a model the Settings pick has to be one magpie serves

What is wrong

The three Settings model picks — Codex's thread titles, the model that
describes images, and the model that generates them — were validated with
provider.Resolve, which answers for any model spelled under a provider
that is on. So fake/missing and fake/ were accepted and saved, and every
image description, every drawing and every thread title then went to the vendor
on a model it does not list. Codex drops a title it failed to write, so the
thread stayed untitled.

The usual cause is a real model picked first and its provider renaming or
retiring it afterwards.

What changed

Each pick now checks the list its own picker offers:

• provider.Served for Codex's titles and the vision model, which keeps
  unlisted providers and routing groups and refuses a known provider with an
  unknown or empty model name;
• the models an on provider draws with (gateway.Drawers, gathered by the new
  imageGens) for image generation, whose image models are not all in the
  served catalog — a plan draws with models it does not chat with.

The Settings page re-sends its own picks with every save, so a value already
saved is checked again rather than kept: one its provider stopped serving is
refused. provider.Resolve itself stays permissive and is not the validator
for these settings, which is what the reference says of it.

POST /api/settings/codex-auto-review already validates against
provider.Served; this PR does not change it.

Semantic change (GUI app shell)

• Before: a pick that no provider serves was saved and used on the next image
  description, drawing or thread title, with nothing said.
• After: such a pick answers 400 with the reason and leaves the saved value
  untouched. A value the provider stopped serving is refused on the next save
  rather than kept.
• Reference: docs/subsystems/gui-shell.md
  (updated in this PR); implementation Handler and imageGens in
  internal/gui/api.go.

Verification

• TestSettingsModelMustBeServed fails without the change, with fake/missing
  and fake/ answering 200 on all three endpoints, and passes with it: it also
  covers a served model that draws nothing and a stale pick re-sent by another
  save.
• Focused settings, Codex titles and auto-review tests; go vet -tags nogui ./internal/gui; the windows, darwin and linux builds.
• The full internal/gui suite has four failures that reproduce the same way
  without this change (TempDir cleanup on Windows, a stale purpose catalog and
  an update relaunch). The Playwright suite was not run: this PR touches no
  string in internal/gui/assets, so no t() key changed.

---

🎬 界面预览

_{CI 用这个 PR 的代码构建并真实运行 magpie（沙盒环境，配置了真实的 DeepSeek key），按改动自动操作、截图和录屏 · 2681c8b · 运行记录}

改动（按代码）：设置页三处模型选择（Codex 会话标题、图像识别、图像生成）改为在保存时按各自选择器列出的清单校验：模型不在清单里就返回 400 并保留原值，不再静默保存；同时把图像生成的候选清单抽成 imageGens（选择器内容不变）。

Warning

描述与代码不符：描述说「设置页每次保存都会重发自己的选择，因而已保存的值会被重新校验，供应商停止提供的值会被拒绝而不是保留」；diff 里只在取值与已保存值不同时才校验（vision/imageGen 与 cur 比较，标题同理），重发同一个已保存的旧值仍然通过并原样保留——与描述写的语义相反，diff 的注释也明确说旧值「保留，不拒绝」。

Note

沙盒里看不到：沙盒里这三个选择器只列出 magpie 实际提供的模型（图像生成只列出 gateway.Drawers 画图用的模型），界面上选不出不在清单里的模型，因此「保存被拒 400 及随之出现在页面上的报错」这条新行为无法在沙盒里演示；同样也没有「模型被供应商改名/下架后残留的旧值」这种状态可造。只能展示这三个选择器本身的候选清单。

_{▶️ 点图打开录屏（可暂停、拖动）· 直接下载 mp4 · 红线是鼠标轨迹，红色圆环是点击}

Codex 会话标题的模型选择器

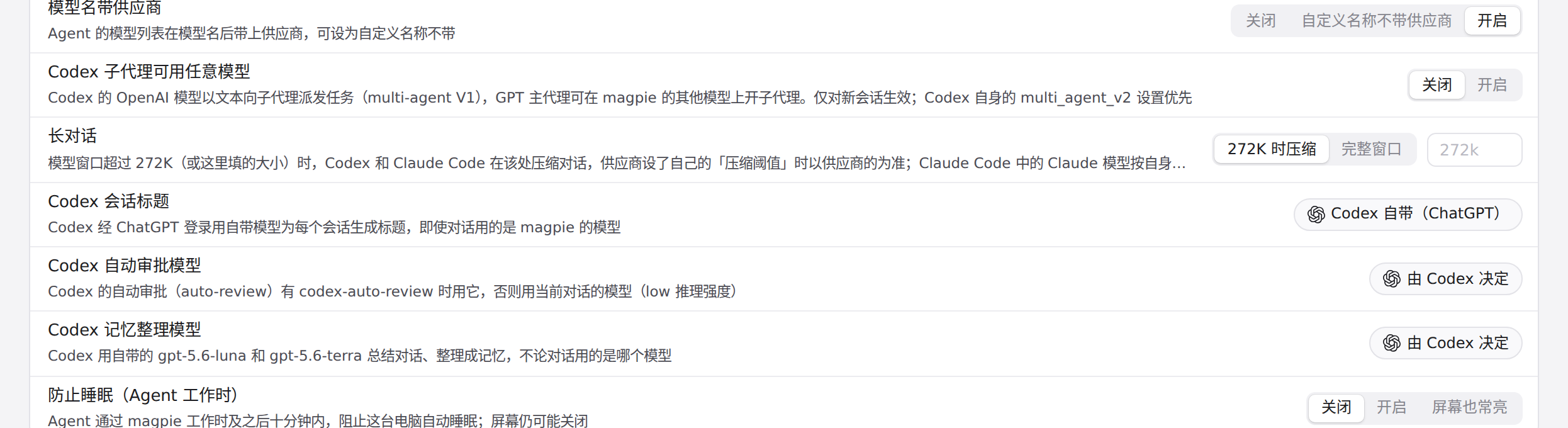

设置 · 常规：Codex 会话标题一行当前的取值

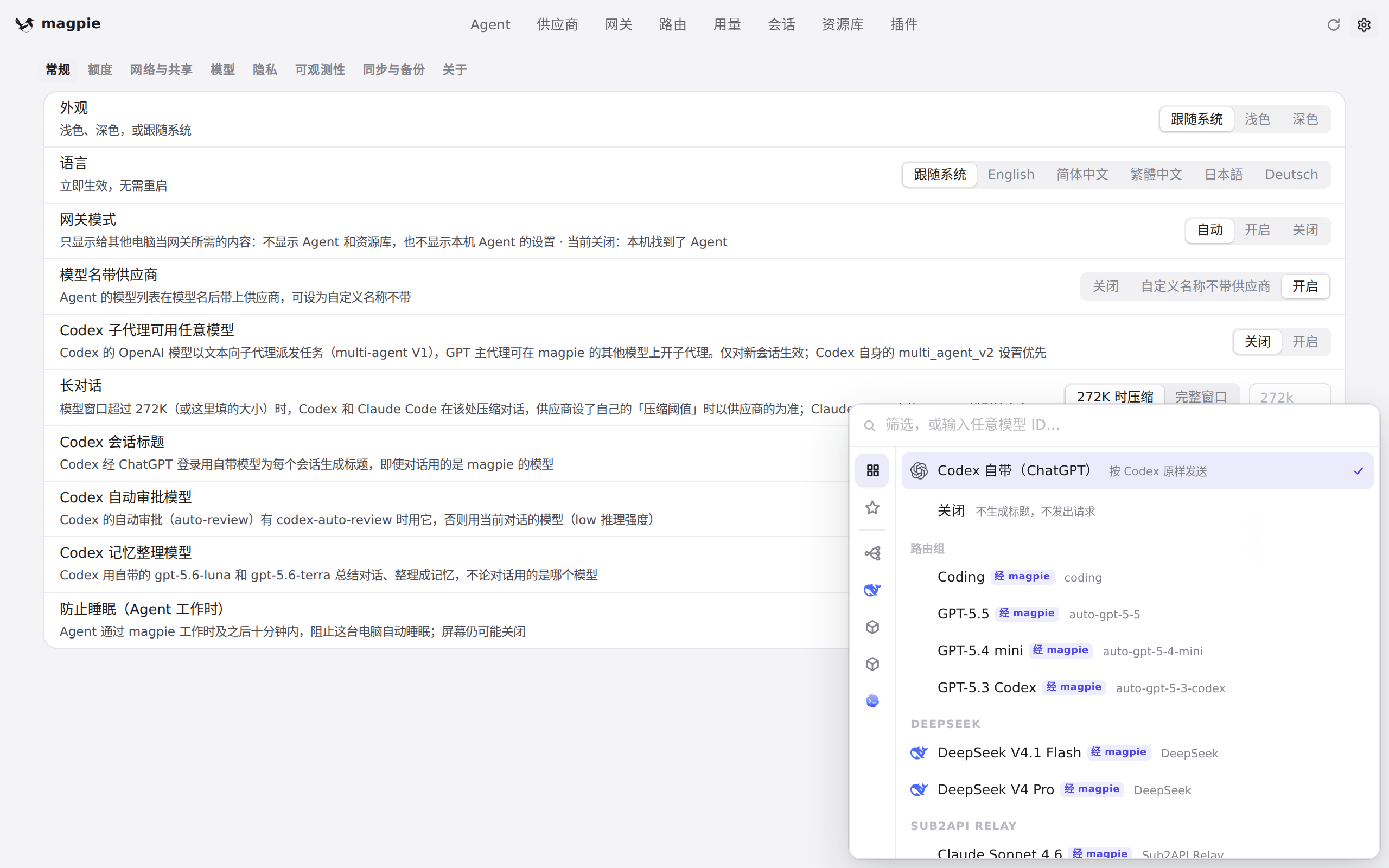

Codex 会话标题选择器展开后的模型清单

设置 · 模型页的两个模型选择

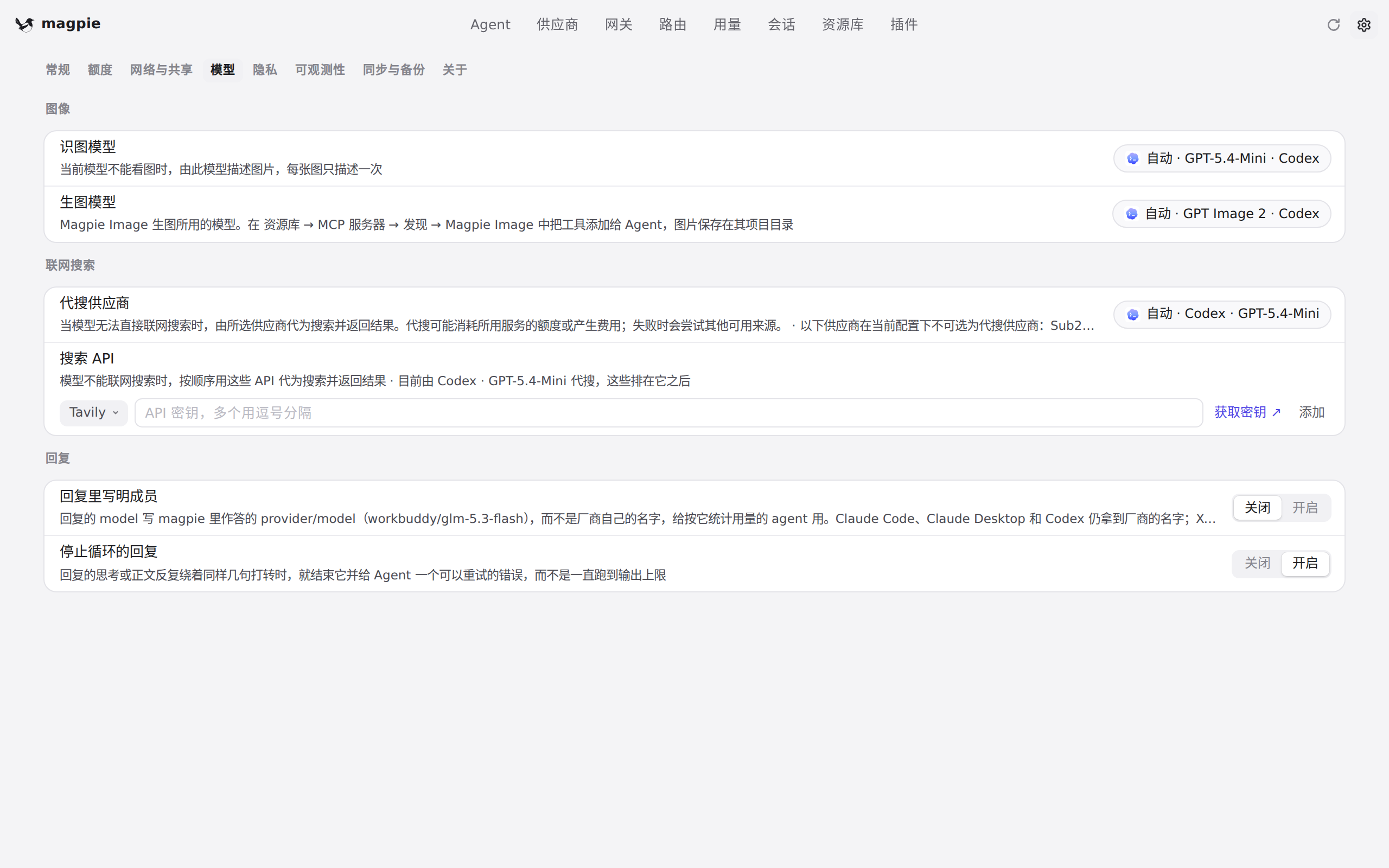

设置 · 模型：图像识别与图像生成两个模型选择

设置 · 模型页向下滚动后的模型选择区域
