🚧 macOS 13 Ventura Support by valnoxy · Pull Request #57 · valnoxy/t440p-oc

valnoxy · 2022-06-07T17:42:36Z

Warning
macOS Ventura is still in Beta! I do not recommend this for productive use!

Current state

OpenCore / Kext Versions:

OpenCore: Modified version of e05a69d
AppleALC: 1.7.3 (bce915e)
CPUFriend: 1.2.6 (44efb5f)
Lilu: 1.6.1 (250b65c)
WhateverGreen: 1.5.9

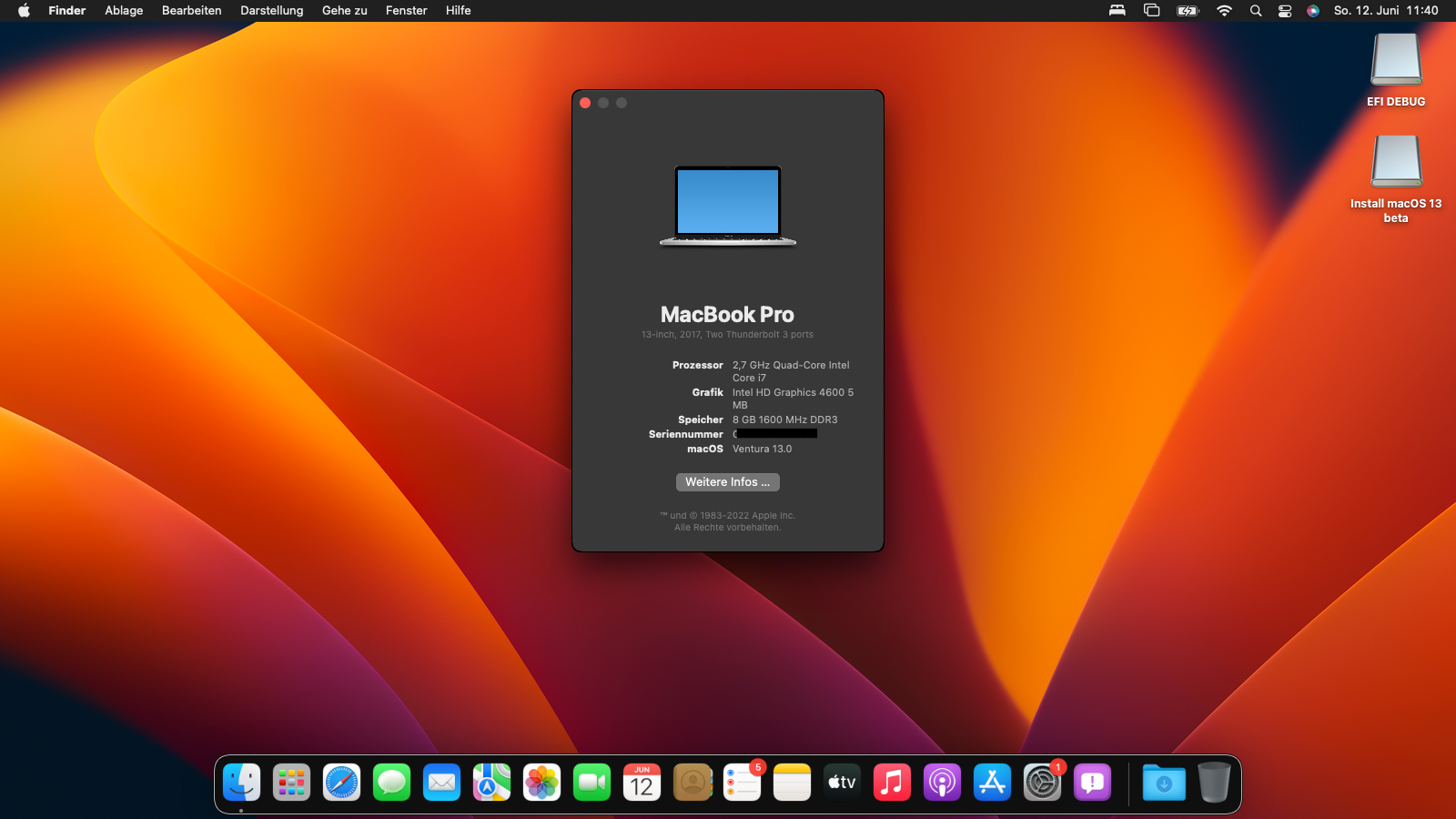

Screenshot

Known Issues

SMBIOS incompatible: A new SMBIOS model will be required.
- Current SMBIOS: MacBookPro11,4
- Testing SMBIOS: MacBookPro14,1 (minimum)
  - Issues: Low CPU / GPU Performance

MacBookPro14,1, Kaby Lake(U), Iris Plus 640 (13"), Mac-B4831CEBD52A0C4C, 10.12.5 (16F2073)

VolkovMaksim · 2022-09-05T16:17:33Z

Hello! Do you have worked DisplayPort With SMBios MBP14,1? I used OpenCore Legacy Patcher for my T440p and iGPU good worked. BUT! I can't get work DisplayPort signal with MPB14.1

ahmedyarub · 2022-10-17T05:35:47Z

Where can I get the recovery image file from? I could get the installer's DMG and converted it to img but it didn't boot.

valnoxy · 2022-10-17T22:17:03Z

Where can I get the recovery image file from? I could get the installer's DMG and converted it to img but it didn't boot.

No recovery image is currently available until the release. You will need to manually upgrade to Ventura, but I don't recommend it as it is very unstable at the moment.

valnoxy · 2022-10-17T22:18:16Z

Hello! Do you have worked DisplayPort With SMBios MBP14,1? I used OpenCore Legacy Patcher for my T440p and iGPU good worked. BUT! I can't get work DisplayPort signal with MPB14.1

I have not tried it yet, but I will look into it later.

ahmedyarub · 2022-10-17T22:33:15Z

Where can I get the recovery image file from? I could get the installer's DMG and converted it to img but it didn't boot.

No recovery image is currently available until the release. You will need to manually upgrade to Ventura, but I don't recommend it as it is very unstable at the moment.

The upgrade failed miserably. I could make a bootable hard-disk and for some reason OC is not recognizing it...

valnoxy · 2022-10-17T22:38:59Z

Did you press the space bar while you were in OC? OpenCore hides some drives by default.

ahmedyarub · 2022-10-17T23:11:58Z

I tried that yea. I tried both using a .img and a real hard-drive with USB-passthrough. Still nothing :(

MultimediaLucario · 2022-10-24T11:34:02Z

I'm really excited to see the final result with macOS Ventura support! 😁

MultimediaLucario · 2022-10-25T10:28:57Z

I'm currently using a slightly tweaked version of your Monterey EFI on my ThinkPad T440s and it works amazingly well.

cezarkrc · 2023-01-25T13:35:15Z

Ventura is now released. Is any new code update ?

thessarb · 2023-03-24T09:11:37Z

Hello! Do you have worked DisplayPort With SMBios MBP14,1? I used OpenCore Legacy Patcher for my T440p and iGPU good worked. BUT! I can't get work DisplayPort signal with MPB14.1

I have not tried it yet, but I will look into it later.

is it possible to spoof the smbios to macos kind of like oclp does?

Jonyx4 · 2023-05-18T19:00:34Z

What's the current status of this release? Thank you!

jackassandre1 · 2023-05-23T22:53:05Z

Hello, I've managed to install 13.2.1 on X240. It boots, but after patching graphics with OCLP it freeze at boot logo after restart.
Also tried to patch with SMBIOS for MBP11,1 and revert to MBP14,1... but gave me the same result.

With my current EFI from Monterey 12.6 (OC 0.9.2) I'm able to boot into Ventura, I have audio and Wifi but no Graphics Acceleration. I hope to be able to upgrade with the help of the Community! :)

cezarkrc · 2023-05-24T15:47:48Z

Hello, I've managed to install 13.2.1 on X240. It boots, but after patching graphics with OCLP it freeze at boot logo after restart. Also tried to patch with SMBIOS for MBP11,1 and revert to MBP14,1... but gave me the same result.

With my current EFI from Monterey 12.6 (OC 0.9.2) I'm able to boot into Ventura, I have audio and Wifi but no Graphics Acceleration. I hope to be able to upgrade with the help of the Community! :)

Please, can you share with us your EFI?

davidwang558 · 2023-06-26T12:02:45Z

Hello, i am using ventura by macos-13-ventura branch , but hd 4600 gpu is only 7mb, very slow. Now I find a fix method from
https://github.com/OakSaytr527/t440p-ventura-oc :
"Use OpenCore Legacy Patcher to patch your Ventura install. This is because Apple dropped support for HD 4600 graphics with Mac OS Ventura, and unless you want a painfully slow experience on Mac OS, then this step is required."

steps detail from http://imacos.top/2022/09/26/2310/ :

download OpenCore-Patcher and install
add and enable AMFIExemption.kext to EFI
download OpenCore Configurator V2.63.1.0
open and modify config.plist by OpenCore Configurator V2.63.1.0:

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->boot-args->add amfi_get_out_of_my_way=1
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->csr-active-config->modify to FF0F0000
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Delete->add csr-active-config

restart pc
open opencore-patcher.app, click 'Post-install Root Patch'->'Start Root Patching'....reboot pc....finish

finally, Intel HD Graphics 4600 7 MB to Intel HD Graphics 4600 1536 MB, gpu is normal.

Luisalvarenga · 2023-09-07T22:50:08Z

Hello, i am using ventura by macos-13-ventura branch , but hd 4600 gpu is only 7mb, very slow. Now I find a fix method from https://github.com/valnoxy/t440p-oc/tree/macos-13-ventura : "Use OpenCore Legacy Patcher to patch your Ventura install. This is because Apple dropped support for HD 4600 graphics with Mac OS Ventura, and unless you want a painfully slow experience on Mac OS, then this step is required."

steps detail from http://imacos.top/2022/09/26/2310/ :

download OpenCore-Patcher and install

add and enable AMFIExemption.kext to EFI

download OpenCore Configurator V2.63.1.0

open and modify config.plist by OpenCore Configurator V2.63.1.0:

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->boot-args->add amfi_get_out_of_my_way=1
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->csr-active-config->modify to FF0F0000
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Delete->add csr-active-config

restart pc

open opencore-patcher.app, click 'Post-install Root Patch'->'Start Root Patching'....reboot pc....finish

finally, Intel HD Graphics 4600 7 MB to Intel HD Graphics 4600 1536 MB, gpu is normal.

Thanks for sharing now its working perfect on t440p

postkevone · 2023-09-12T13:21:11Z

Hello, i am using ventura by macos-13-ventura branch , but hd 4600 gpu is only 7mb, very slow. Now I find a fix method from https://github.com/OakSaytr527/t440p-ventura-oc : "Use OpenCore Legacy Patcher to patch your Ventura install. This is because Apple dropped support for HD 4600 graphics with Mac OS Ventura, and unless you want a painfully slow experience on Mac OS, then this step is required."

steps detail from http://imacos.top/2022/09/26/2310/ :

download OpenCore-Patcher and install

add and enable AMFIExemption.kext to EFI

download OpenCore Configurator V2.63.1.0

open and modify config.plist by OpenCore Configurator V2.63.1.0:

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->boot-args->add amfi_get_out_of_my_way=1
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->csr-active-config->modify to FF0F0000
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Delete->add csr-active-config

restart pc

open opencore-patcher.app, click 'Post-install Root Patch'->'Start Root Patching'....reboot pc....finish

finally, Intel HD Graphics 4600 7 MB to Intel HD Graphics 4600 1536 MB, gpu is normal.

Before following this guide do we just need to change the SMBIOS to MacBookPro14,1 and add the CPU Friend kext or are there any more steps？

Luisalvarenga · 2023-09-13T00:16:03Z

Hello, i am using ventura by macos-13-ventura branch , but hd 4600 gpu is only 7mb, very slow. Now I find a fix method from https://github.com/OakSaytr527/t440p-ventura-oc : "Use OpenCore Legacy Patcher to patch your Ventura install. This is because Apple dropped support for HD 4600 graphics with Mac OS Ventura, and unless you want a painfully slow experience on Mac OS, then this step is required."
steps detail from http://imacos.top/2022/09/26/2310/ :

download OpenCore-Patcher and install

add and enable AMFIExemption.kext to EFI

download OpenCore Configurator V2.63.1.0

open and modify config.plist by OpenCore Configurator V2.63.1.0:

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->boot-args->add amfi_get_out_of_my_way=1
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->csr-active-config->modify to FF0F0000
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Delete->add csr-active-config

restart pc

open opencore-patcher.app, click 'Post-install Root Patch'->'Start Root Patching'....reboot pc....finish

finally, Intel HD Graphics 4600 7 MB to Intel HD Graphics 4600 1536 MB, gpu is normal.

Before following this guide do we just need to change the SMBIOS to MacBookPro14,1 and add the CPU Friend kext or are there any more steps？

I just changed to MBPro 14,1

postkevone · 2023-09-13T00:38:20Z

I just changed to MBPro 14,1

Ok, thank you!

MultimediaLucario · 2023-10-03T10:20:40Z

Are you going to make macOS Ventura support stable for the T440p?

loonalol · 2023-10-23T00:46:17Z

has anybody managed to get the mini display port to work with a patched igpu?

postkevone · 2023-10-23T05:27:09Z

has anybody managed to get the mini display port to work with a patched igpu?

Mine works fine on Ventura with valnoxy's EFI

loonalol · 2023-10-24T15:41:58Z

has anybody managed to get the mini display port to work with a patched igpu?

Mine works fine on Ventura with valnoxy's EFI

odd, which version of ventura?

postkevone · 2023-10-24T22:51:45Z

odd, which version of ventura?

13.6, however I forgot to mention that I am using a mini display port to HDMI adapter, maybe that is why yours is not working.

loonalol · 2023-10-25T00:08:07Z

odd, which version of ventura?

13.6, however I forgot to mention that I am using a mini display port to HDMI adapter, maybe that is why yours is not working.

I tried a mini dp to hdmi aswsell it does work but it's really slow (1920x1080@30hz), also does your bluetooth work by any chance?

postkevone · 2023-11-03T03:52:52Z

I tried a mini dp to hdmi aswsell it does work but it's really slow (1920x1080@30hz), also does your bluetooth work by any chance?

I have a native card so my bluetooth works fine (I enabled it with OCLP). Try to see if the device properties of your GPU looks like this:

HDMI works fine for me on Sonoma 14.1, however sometimes I need to disconnect the adapter and re-connect it in order for it to be recognized by the system.

MuhamadSelim · 2024-01-29T05:47:46Z

I tried a mini dp to hdmi aswsell it does work but it's really slow (1920x1080@30hz), also does your bluetooth work by any chance?

I have a native card so my bluetooth works fine (I enabled it with OCLP). Try to see if the device properties of your GPU looks like this:

HDMI works fine for me on Sonoma 14.1, however sometimes I need to disconnect the adapter and re-connect it in order for it to be recognized by the system.

Congratulation to manage to install Sonoma but How could you upgrade because MBPro14,1 isn't upgradable for me

MuhamadSelim · 2024-01-31T01:04:27Z

WIFI Not Working
still reviewing all

postkevone · 2024-02-22T13:40:42Z

@MuhamadSelim MacBookPro14,1 natively supports Sonoma, so if you are not able to download it directly from the App Store you are doing something wrong.
Wifi depends on the type of card you have, if you have intel you will have to use the 2.3.0 alpha version of this: https://github.com/OpenIntelWireless/itlwm/releases
Otherwise follow this guide for other unsupported cards: https://github.com/5T33Z0/OC-Little-Translated/blob/main/14_OCLP_Wintel/Enable_Features/WiFi_Sonoma.md

ProCodeProgrammers · 2024-03-09T16:49:04Z

Hello, i am using ventura by macos-13-ventura branch , but hd 4600 gpu is only 7mb, very slow. Now I find a fix method from https://github.com/valnoxy/t440p-oc/tree/macos-13-ventura : "Use OpenCore Legacy Patcher to patch your Ventura install. This is because Apple dropped support for HD 4600 graphics with Mac OS Ventura, and unless you want a painfully slow experience on Mac OS, then this step is required."
steps detail from http://imacos.top/2022/09/26/2310/ :

download OpenCore-Patcher and install

add and enable AMFIExemption.kext to EFI

download OpenCore Configurator V2.63.1.0

open and modify config.plist by OpenCore Configurator V2.63.1.0:

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->boot-args->add amfi_get_out_of_my_way=1
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->csr-active-config->modify to FF0F0000
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Delete->add csr-active-config

restart pc

open opencore-patcher.app, click 'Post-install Root Patch'->'Start Root Patching'....reboot pc....finish

finally, Intel HD Graphics 4600 7 MB to Intel HD Graphics 4600 1536 MB, gpu is normal.

Thanks for sharing now its working perfect on t440p

I have successfully installed ventura on my t540p laptop everything working perfect but my GPU is showing 4mb

i already followed the above steps but when i do the last to step to patch my ventura mac os and then restarts ,

after restarts the system not booting it shows me a mac os error dialog that mac os encounter some issue that is why it not booting,

so any please me that to figure out this problem

techdevmaestro · 2024-03-16T22:25:02Z

hey guys,
i installed the ventura with the patch but my touchpad is acting kinda weird for ex. when i'm moving windows it's slow and scrolling is working on the beginning but then it's stopping to work it's an t450p touchpad so maybe that the fault can anyone help with it?
edit: my display port isn't working either
edit2: installing VoodooSMBus helped with the touchpad but i still can't get the second display to work

VinylNerd · 2024-04-07T02:45:25Z

I have successfully installed ventura on my t540p laptop everything working perfect but my GPU is showing 4mb

i already followed the above steps but when i do the last to step to patch my ventura mac os and then restarts ,

after restarts the system not booting it shows me a mac os error dialog that mac os encounter some issue that is why it not booting,

so any please me that to figure out this problem

same for me.....

techdevmaestro · 2024-04-07T20:25:13Z

Hello, i am using ventura by macos-13-ventura branch , but hd 4600 gpu is only 7mb, very slow. Now I find a fix method from https://github.com/valnoxy/t440p-oc/tree/macos-13-ventura : "Use OpenCore Legacy Patcher to patch your Ventura install. This is because Apple dropped support for HD 4600 graphics with Mac OS Ventura, and unless you want a painfully slow experience on Mac OS, then this step is required."
steps detail from http://imacos.top/2022/09/26/2310/ :

download OpenCore-Patcher and install

add and enable AMFIExemption.kext to EFI

download OpenCore Configurator V2.63.1.0

open and modify config.plist by OpenCore Configurator V2.63.1.0:

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->boot-args->add amfi_get_out_of_my_way=1
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->csr-active-config->modify to FF0F0000
config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Delete->add csr-active-config

restart pc

open opencore-patcher.app, click 'Post-install Root Patch'->'Start Root Patching'....reboot pc....finish

finally, Intel HD Graphics 4600 7 MB to Intel HD Graphics 4600 1536 MB, gpu is normal.

Thanks for sharing now its working perfect on t440p

I have successfully installed ventura on my t540p laptop everything working perfect but my GPU is showing 4mb

i already followed the above steps but when i do the last to step to patch my ventura mac os and then restarts ,

after restarts the system not booting it shows me a mac os error dialog that mac os encounter some issue that is why it not booting,

so any please me that to figure out this problem

just reinstall macos and it should be gone

VinylNerd · 2024-04-07T23:42:27Z

Hello, i am using ventura by macos-13-ventura branch , but hd 4600 gpu is only 7mb, very slow. Now I find a fix method from https://github.com/valnoxy/t440p-oc/tree/macos-13-ventura : "Use OpenCore Legacy Patcher to patch your Ventura install. This is because Apple dropped support for HD 4600 graphics with Mac OS Ventura, and unless you want a painfully slow experience on Mac OS, then this step is required."

steps detail from http://imacos.top/2022/09/26/2310/ :

download OpenCore-Patcher and install

add and enable AMFIExemption.kext to EFI

download OpenCore Configurator V2.63.1.0

open and modify config.plist by OpenCore Configurator V2.63.1.0:

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->boot-args->add amfi_get_out_of_my_way=1

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Add->csr-active-config->modify to FF0F0000

config.plist -› nvram -› 7C436110-AB2A-4BBB-A880-FE41995C9F82 -› Delete->add csr-active-config

restart pc

open opencore-patcher.app, click 'Post-install Root Patch'->'Start Root Patching'....reboot pc....finish

finally, Intel HD Graphics 4600 7 MB to Intel HD Graphics 4600 1536 MB, gpu is normal.

Thanks for sharing now its working perfect on t440p

I have successfully installed ventura on my t540p laptop everything working perfect but my GPU is showing 4mb

i already followed the above steps but when i do the last to step to patch my ventura mac os and then restarts ,

after restarts the system not booting it shows me a mac os error dialog that mac os encounter some issue that is why it not booting,

so any please me that to figure out this problem

just reinstall macos and it should be gone

I have not seen evidence or anyone responding to proper questions on ventura or sonoma, i tried both and got working acceleration and ok performance, but firefox and brave would not work, i suspect more issues, just finished downgrade to monterey and its working with no patch, last i remember early monterey had issues so i stuck with big sur, it seems monterey is the farthest T440P/Haswell Graphics

valnoxy added 3 commits June 7, 2022 19:39

🚧 Add debug switch

17a4fc4

🚧 Custom OpenCore Version

8f73585

🚧 [TEST] MacBookPro14,1

43a691e

MacBookPro14,1, Kaby Lake(U), Iris Plus 640 (13"), Mac-B4831CEBD52A0C4C, 10.12.5 (16F2073)

⚙️ Update OpenCore & Kexts

be214ea

Uh oh!

Conversation

valnoxy commented Jun 7, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Current state

OpenCore / Kext Versions:

Screenshot

Known Issues

Uh oh!

VolkovMaksim commented Sep 5, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

ahmedyarub commented Oct 17, 2022

Uh oh!

valnoxy commented Oct 17, 2022

Uh oh!

valnoxy commented Oct 17, 2022

Uh oh!

ahmedyarub commented Oct 17, 2022

Uh oh!

valnoxy commented Oct 17, 2022

Uh oh!

ahmedyarub commented Oct 17, 2022

Uh oh!

MultimediaLucario commented Oct 24, 2022

Uh oh!

MultimediaLucario commented Oct 25, 2022

Uh oh!

cezarkrc commented Jan 25, 2023

Uh oh!

thessarb commented Mar 24, 2023

Uh oh!

Jonyx4 commented May 18, 2023

Uh oh!

jackassandre1 commented May 23, 2023

Uh oh!

cezarkrc commented May 24, 2023

Uh oh!

davidwang558 commented Jun 26, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

Luisalvarenga commented Sep 7, 2023

Uh oh!

postkevone commented Sep 12, 2023

Uh oh!

Luisalvarenga commented Sep 13, 2023

Uh oh!

postkevone commented Sep 13, 2023

Uh oh!

MultimediaLucario commented Oct 3, 2023

Uh oh!

loonalol commented Oct 23, 2023

Uh oh!

postkevone commented Oct 23, 2023

Uh oh!

loonalol commented Oct 24, 2023

Uh oh!

postkevone commented Oct 24, 2023

Uh oh!

loonalol commented Oct 25, 2023

Uh oh!

postkevone commented Nov 3, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

MuhamadSelim commented Jan 29, 2024

Uh oh!

MuhamadSelim commented Jan 31, 2024 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

postkevone commented Feb 22, 2024

Uh oh!

ProCodeProgrammers commented Mar 9, 2024

Uh oh!

techdevmaestro commented Mar 16, 2024 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

VinylNerd commented Apr 7, 2024

Uh oh!

techdevmaestro commented Apr 7, 2024

Uh oh!

valnoxy commented Jun 7, 2022 •

edited

Loading

VolkovMaksim commented Sep 5, 2022 •

edited

Loading

davidwang558 commented Jun 26, 2023 •

edited

Loading

postkevone commented Nov 3, 2023 •

edited

Loading

MuhamadSelim commented Jan 31, 2024 •

edited

Loading

techdevmaestro commented Mar 16, 2024 •

edited

Loading
